DB
DB

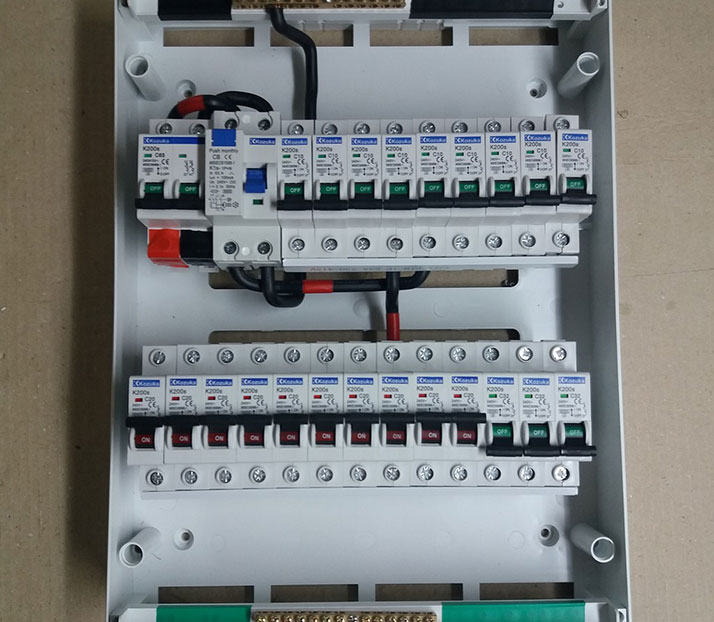

Our Distribution Boards (DB) are designed to meet the diverse needs of electrical installations, offering both flush and surface-mounted options. These boards are custom-assembled, ensuring flexibility and suitability for any environment. With top, bottom and side cable entry options, they provide ease of connection while maintaining efficient space utilization. Engineered for durability and safety, the DBs are rated for ambient temperatures up to 50°C and come with a variety of components including isolators, ELCBs, MCBs and bus bars for efficient power distribution. The robust electro-galvanized sheet steel enclosure ensures long-lasting protection, making our DBs ideal for both residential and commercial applications.
Specifications
- Final DBs Flush or Surface mounted type.
- Assembled according to the specification and requirements.
- Top, bottom and side cable entry.
- Ambient temperature rating 50’C.
Technical Data
- Incomer : Isolator 40 to 160A, 3Pole or 4Pole with / without extended door handle.
- Outgoings : ELCBs 25A to 125A, 30mA to 300mA, 2P/4Pole MCBs 6 to 63A, 1P/2P/3P, 6 to 10 kA.
- Bus Bar : 100/63Amp rated 1P/2P/3P/4P comb bus bar.
- Enclosure : Electro galvanized sheet steel, powder coated.
